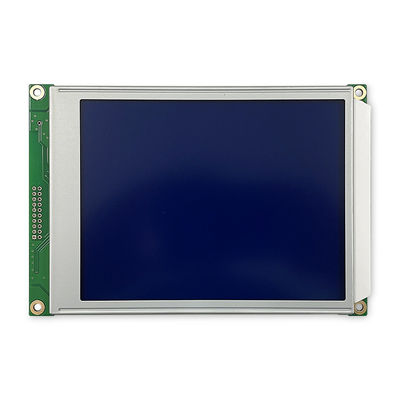

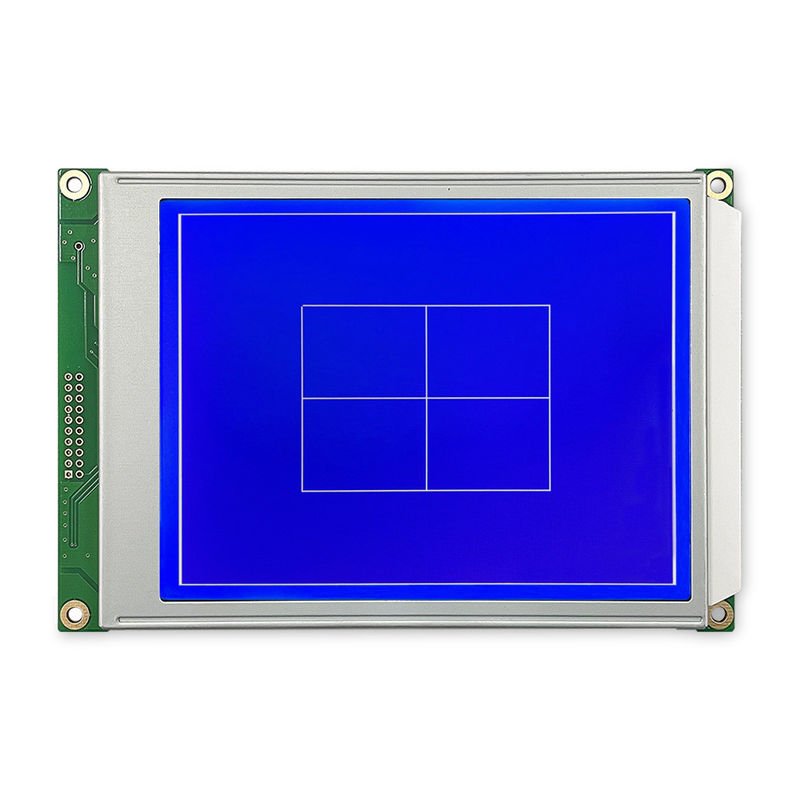

320X240 Super Twisted Nematic Display 5.7 Inch LCD Display RA8835 Driver IC

Name: 320X240 Super Twisted Nematic Display 5.7 Inch LCD Display RA8835 Driver IC
Brand: shenzhen huaxianjing display touch co.,LTD
SKU: HXJ320240B8
Availability: InStock

Brand Name:	HuaXianJing
Model Number:	HXJ320240B8
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

Super Twisted Nematic Display

Backlight Luminance:

350 Cd/m2

Screen Size:

5.7 Inch

Panel Size(mm):

160.0*109.0*11.0

Viewing Area(mm):

122.0*92.0

Display Resolution:

320x240 Pexels

Interface:

RGB

Driver Ic Model:

RA8835

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

320X240 Super Twisted Nematic Display

Super Twisted Nematic Display 5.7 Inch

5.7 Inch LCD Display

Product Description

5.7 inch STN LCD display graphic dot matrix RA8835 driver IC RGB connection 350 brightness 320X240 resolution

It a 5.7 inch STN LCD display with graphic dot matrix. Driven by the RA8835 driver IC and connected via RGB, it offers a resolution of 320x240 and a brightness of 350. Ideal for various applications.

Product Features:

5.7 inch large display for enhanced visibility.
STN technology for reliable performance.
Graphic dot matrix for clear and detailed images.
RA8835 driver IC for stable operation.
RGB connection for high-quality data transfer.
Brightness of 350 for good visibility in different environments.

Application Scenarios:

Industrial control panels for clear data display.
Medical devices for accurate readings and visualizations.
Automotive dashboards for information display.
Portable test equipment for on-the-go usage.
Security systems for monitoring and display.

Product Parameter:

Panel Name	5.7 inch STN LCD display
Dimensions	160.0109.011.0mm
Viewing area size	122.0*92.0mm
Display size	115.17*86.37mm
Display Mode	STN/Blue Film
storage temperature	-30~70
working temperature	-20~80
interface	RGB
Driver IC	RA8835

Drawing:

320X240 Super Twisted Nematic Display 5.7 Inch LCD Display RA8835 Driver IC 0
