Chip On Glass LCD Display , 2.4 Inch LCD Module With Serial Port Interface

Brand Name:	HuaXianJing
Model Number:	HXJ0802AV20
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

Chip On Glass LCD Display

Backlight Luminance:

300 Cd/m2

Screen Size:

2.4-inch

Panel Size(mm):

50.0*32.0*13.5

Viewing Area(mm):

28.0*16.0

Resolution:

8x2

Interface:

Parallel Port

Driver Ic Model:

SPLC780D1

Number Of Pins:

14 PIN

Display Mode:

STN/yellow-green Mold

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

Chip On Glass LCD Display

LCD Display 2.4 Inch

2.4 Inch LCD Module

Product Description

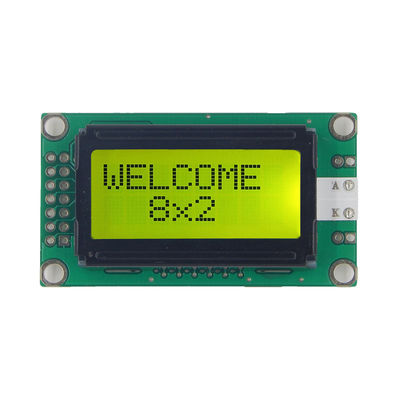

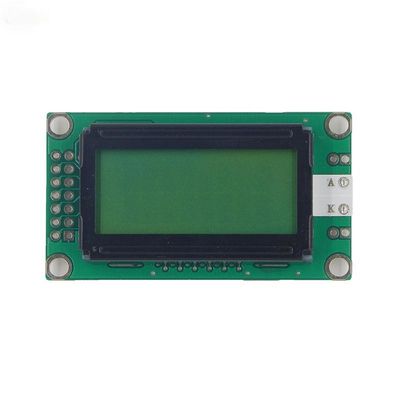

2.4 inch COG LCD display yellow and green film display 14pins serial port interface driver IC SPLC780D1 300 brightness

It a 2.4 inch COG LCD display with a yellow and green film display. This display features a 14-pin serial port interface and is driven by the SPLC780D1 driver IC. With a brightness of 300, it offers clear visibility in various lighting conditions.

Product Features:

2.4-inch Size: Offers a good balance between visibility and space requirements.
Yellow and Green Film Display: Provides a unique visual appearance and enhanced readability.
14-pin Serial Port Interface: Enables easy connection and integration.
SPLC780D1 Driver IC: Ensures stable and efficient performance.
High Brightness: The 300 brightness level makes it suitable for different environments.

Applicable Scenarios:

Industrial Control Panels: For displaying process parameters and status.
Medical Devices: To provide clear readouts and diagnostic information.
Consumer Electronics: Such as portable gaming devices and digital cameras.
Automotive Displays: Can be used for dashboard indicators and infotainment systems.

Product Parameter:

Panel Name	2.4 inch COG LCD display
Dimensions	50.032.013.5mm
Viewing area size	28.0*16.0mm
brightness	300 cd/m2
Resolution	8*2
working temperature	-20°C~+70°C
storage temperature	-30°C~+80°C
interface	parallel port
Driver IC	SPLC780D1
