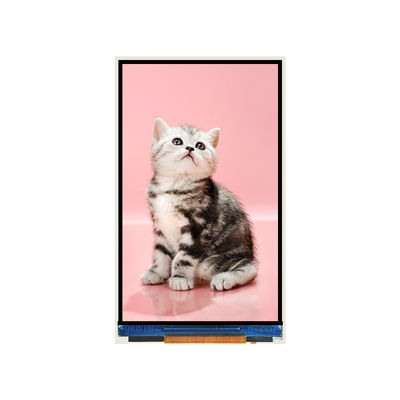

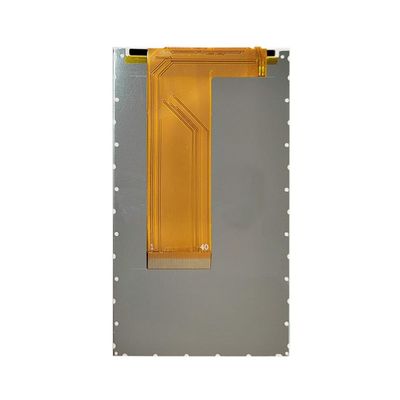

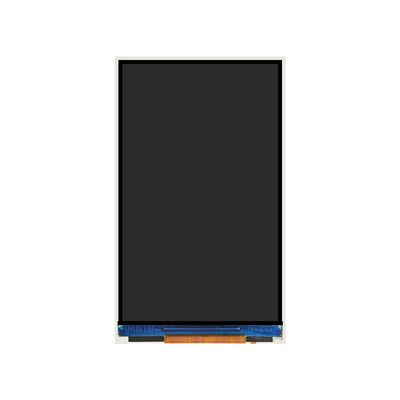

4 Inch IPS Display 400 Cd/M2 800x480 Display MIPI Interface Driver IC ILI9806E

Name: 4 Inch IPS Display 400 Cd/M2 800x480 Display MIPI Interface Driver IC ILI9806E
Brand: shenzhen huaxianjing display touch co.,LTD
SKU: HXJ40046
Availability: InStock

Brand Name:	HuaXianJing
Model Number:	HXJ40046
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

IPS Display

Backlight Luminance:

400 Cd/m2

Screen Size:

4.0 Inch

Panel Size(mm):

57.14x96.85x2.15

Viewing Area(mm):

51.84x86.4

Display Resolution:

480X800 Pexels

Pixel Arrangement:

MIPI

Driver Ic Model:

ILI9806E

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

4 Inch IPS Display

IPS Display 400 Cd/M2

800x480 Display 4 Inch

Product Description

4 inch IPS display 480*800 resolution MIPI interface with 400 brightness driver IC ILI9806E

This product features a 4 inch IPS display with a resolution of 480x800. It is equipped with a MIPI interface and has a brightness of 400. The display is driven by the ILI9806E driver IC.

Product Characteristics:

The IPS panel provides superior color accuracy and wide viewing angles.
The 480x800 resolution offers clear and sharp visuals.
The MIPI interface enables fast data transmission.
With a brightness of 400, it is suitable for various lighting conditions.
The ILI9806E driver IC ensures stable and reliable performance.

Applicable Scenarios:

Ideal for handheld devices such as portable gaming consoles and e-readers.
Can be used in industrial control panels for clear display of information.
Suitable for medical devices that require a compact and high-quality display.

Product Parameter:

Panel Name	4inch
Dimensions	57.14x96.85x2.15mm
Viewing area size	51.84x86.4mm
brightness	400 cd/m2
Resolution	480X800
working temperature	-20°C~+70°C
storage temperature	-30°C~+80°C
interface	MIPI
Driver IC	ILI9806E

Drawing:

4 Inch IPS Display 400 Cd/M2 800x480 Display MIPI Interface Driver IC ILI9806E 0
