products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
UART LCD Display
Created with Pixso.

250 Cd/M2 Single Touch Display 480x272 Touch Screen Modules 4.3 Inch Driver IC T5L0

250 Cd/M2 Single Touch Display 480x272 Touch Screen Modules 4.3 Inch Driver IC T5L0

250 Cd/M2 Single Touch Display 480x272 Touch Screen Modules 4.3 Inch Driver IC T5L0

Brand Name: HuaXianJing
Model Number: HXJ4302
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO14001/ISO9001/IATF16949
Name:
Single Touch Display
Backlight Luminance:
250 Cd/m2
Screen Size:
4.3 Inch
Panel Size(mm):
121.92X73.15X12.8
Viewing Area(mm):
95.04X53.86
Display Resolution:
480x272 Pexels
Interface:
TTL/232
Driver Ic Model:
T5L0
Touch Function:
Single Touch
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

250 Cd/m2 Single Touch Display

,

Single Touch Display 480x272

,

Touch Screen Modules 4.3 Inch

Product Description



4.3 inch UART LCD display 480x272 resolution TTL/232 interface 250 brightness driver IC T5L0

It a 4.3 inch UART LCD display with a resolution of 480x272. Equipped with a TTL/232 interface and boasting a brightness of 250, driven by the T5L0 driver IC.



Product Features:



  • 4.3 inch display size for a clear and visible viewing experience.

  • High resolution of 480x272 for detailed visuals.

  • UART interface for convenient communication.

  • TTL/232 interface options for flexibility in connectivity.

  • Brightness of 250 for good visibility in different lighting conditions.

  • Driven by the reliable T5L0 driver IC.



Application Scenarios:



  • Industrial control systems for monitoring and displaying data.

  • Portable medical devices for clear readouts.

  • Automotive dashboards for displaying vehicle information.

  • Home automation interfaces for easy control and monitoring.

  • Point-of-sale terminals for customer interaction and transaction display.



Product Parameter:



Panel Name

4.3 inch UART LCD display

Dimensions

121.92X73.15X12.8

Viewing area size

95.04X53.86

brightness

250 cd/m2

Resolution

480x272

working temperature

-20°C~+70°C

storage temperature

-30°C~+80°C

interface

TTL/232

Driver IC

T5L0

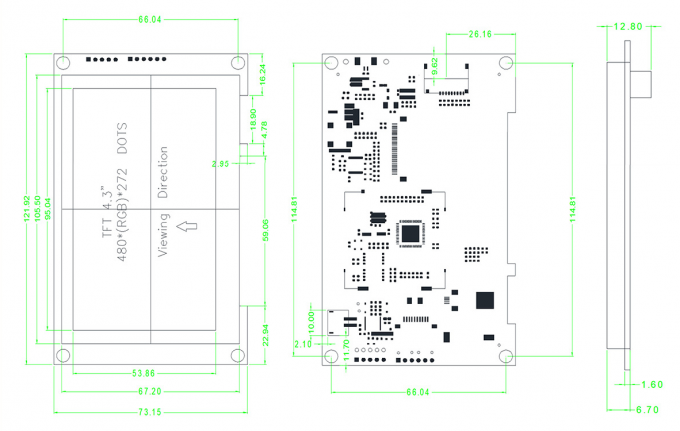

Drawing:






Tags:

Uart Display Module

Uart Touch Screen

Uart LCD Module
