products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Round LCD Display
Created with Pixso.

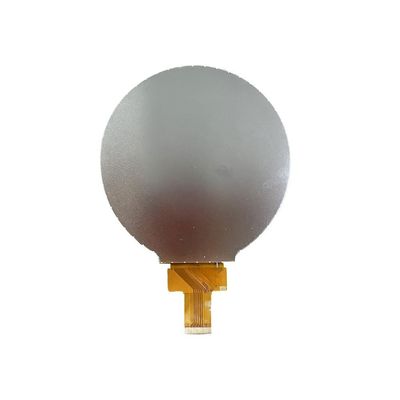

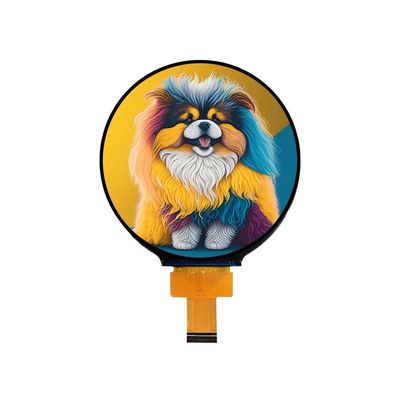

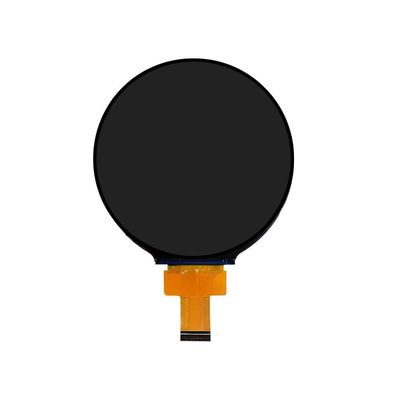

720x720 Display 800 Cd/m2 Round LCD Panel 4 Inch MIPI Interface IPS Full Viewing Angle

720x720 Display 800 Cd/m2 Round LCD Panel 4 Inch MIPI Interface IPS Full Viewing Angle

720x720 Display 800 Cd/m2 Round LCD Panel 4 Inch MIPI Interface IPS Full Viewing Angle

Brand Name: HuaXianJing
Model Number: HXJ40081-P30-W
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO14001/ISO9001/IATF16949
Name:
720x720 Display
Backlight Luminance:
800 Cd/m2
Screen Size:
4.0 Inch
Panel Size(mm):
105.6*109.87*1.05
Viewing Area(mm):
101.52*101.52
Display Resolution:
720x720 Pexels
Interface:
MIPI
Driver Ic Model:
JD9365DA
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

720x720 Display

,

Display 800 Cd/m2

,

Round LCD Panel 4 Inch

Product Description



4 inch round LCD display 720*720 resolution MIPI interface IPS full viewing angle 800 brightness driver IC JD9365DA

It a 4 inch round LCD display with a resolution of 720*720. It is equipped with a MIPI interface and features IPS technology for a full viewing angle. The display has a brightness of 800 and is driven by the JD9365DA driver IC.



Product Features:



  • Unique round shape for an eye-catching design.

  • High-resolution 720*720 for crisp and detailed visuals.

  • MIPI interface for efficient data transmission.

  • IPS panel provides excellent color reproduction and wide viewing angles.

  • 800 brightness ensures good visibility even in bright environments.

  • Driven by the reliable JD9365DA driver IC for stable performance.



Applicable Scenarios:



  • Wearable devices for a stylish and functional display.

  • Portable medical instruments for clear data presentation.

  • Industrial control panels where a compact and high-quality display is needed.

  • Handheld gaming consoles for an immersive gaming experience.



Product Parameter:



Panel Name

4 inch round LCD display

Dimensions

105.6*109.87*1.05mm

Viewing area size

101.52*101.52mm

brightness

800 cd/m2

Resolution

720*720

working temperature

-20°C~+70°C

storage temperature

-30°C~+80°C

interface

mipi

Driver IC

JD9365DA



Drawing:





720x720 Display 800 Cd/m2 Round LCD Panel 4 Inch MIPI Interface IPS Full Viewing Angle 0

Tags:

Round LCD Panel

Round Display Screen

Round Display Module
