Round LCD Display
Created with Pixso.

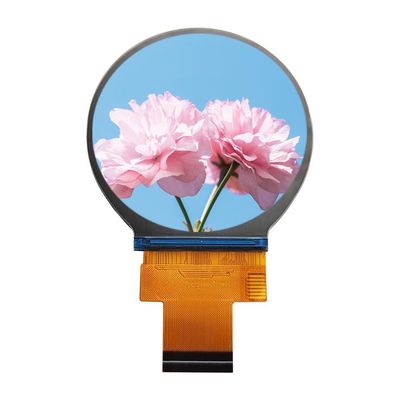

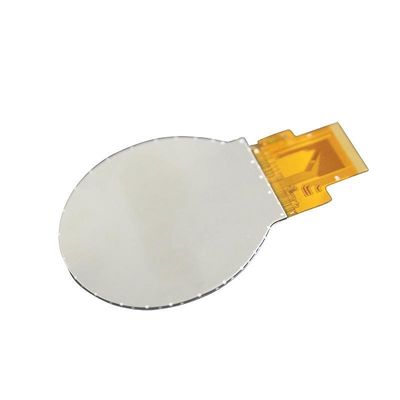

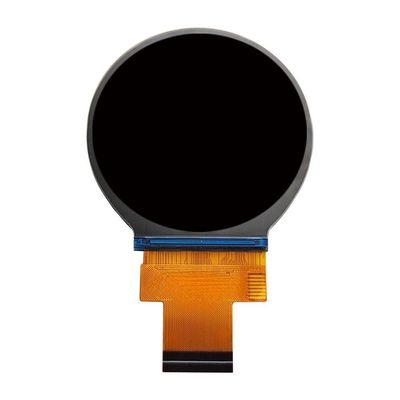

2.1 Inch Round LCD Module 480x480 Round LCD Screen 300 Cd/M2 RGB + SPI Interface

2.1 Inch Round LCD Module 480x480 Round LCD Screen 300 Cd/M2 RGB + SPI Interface

2.1 Inch Round LCD Module 480x480 Round LCD Screen 300 Cd/M2 RGB + SPI Interface

Brand Name: HuaXianJing
Model Number: HXJ21001
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO14001/ISO9001/IATF16949
Name:
Round LCD Module
Backlight Luminance:
300 Cd/m2
Screen Size:
2.1 Inch
Panel Size(mm):
56.18*59.71*2.3
Viewing Area(mm):
53.28*53.28
Display Resolution:
480x480 Pexels
Interface:
SPI/RGB/MIPI
Driver Ic Model:
ST7701S
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

2.1 Inch Round LCD Module

,

Round LCD Module 480x480

,

Round LCD Screen 300 Cd/M2

Product Description



2.1 inch round LCD display 480*480 resolution RGB+SPI interface IPS full viewing angle 300 brightness driver IC ST7701S

It a 2.1 inch round LCD display with a resolution of 480*480. It is equipped with an RGB+SPI interface and features IPS technology for a full viewing angle. The display has a brightness of 300 and is driven by the ST7701S driver IC.



Product Features:



  • Distinctive round shape for a unique visual appeal.

  • High-resolution 480*480 for sharp and clear images.

  • RGB+SPI interface for easy connectivity.

  • IPS panel offers excellent color reproduction and wide viewing angles.

  • 300 brightness for good visibility in different environments.

  • Driven by the reliable ST7701S driver IC for stable performance.



Applicable Scenarios:



  • Smartwatches for a compact and high-quality display.

  • Portable fitness trackers to show relevant information clearly.

  • Miniature industrial instruments where space is limited.

  • Small handheld gaming devices for an immersive experience.



Product Parameter:



Panel Name

2.1 inch round LCD display

Dimensions

56.18*59.71*2.3mm

Viewing area size

53.28*53.28mm

brightness

300cd/m2

Resolution

480*480

working temperature

-20°C~+70°C

storage temperature

-30°C~+80°C

interface

SPI/RGB/MIPI

Driver IC

ST7701S



Drawing:





2.1 Inch Round LCD Module 480x480 Round LCD Screen 300 Cd/M2 RGB + SPI Interface 0
