3.5 Inch IPS LCD Screen 320*240 Resolution 300 Nits Display Driver IC ST7272A

Name: 3.5 Inch IPS LCD Screen 320*240 Resolution 300 Nits Display Driver IC ST7272A
Brand: shenzhen huaxianjing display touch co.,LTD
SKU: HXJ35008
Availability: InStock

Brand Name:	HuaXianJing
Model Number:	HXJ35008
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

IPS LCD Screen

Backlight Luminance:

300 Cd/m2

Screen Size:

3.5 Inch

Panel Size(mm):

76.78*63.74*3.2

Viewing Area(mm):

70.08*52.56

Display Resolution:

320x240 Pexels

Interface:

RGB/SPI

Driver Ic Model:

ST7272A

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

3.5 Inch IPS LCD Screen

IPS LCD Screen 320*240

300 Nits Display 3.5 Inch

Product Description

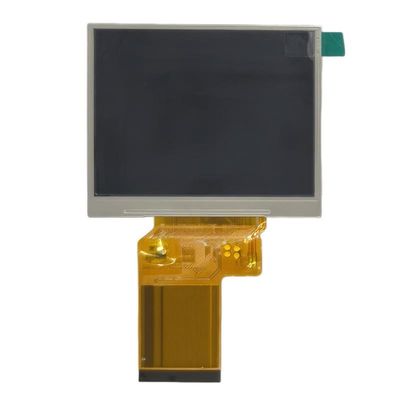

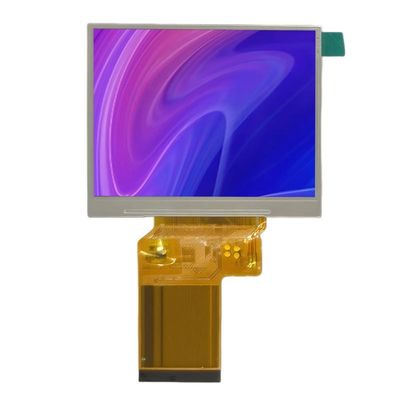

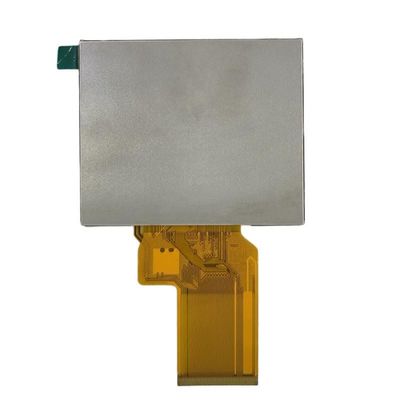

3.5 inch IPS LCD screen 320*240 resolution RGB+SPI interface 300 brightness driver IC ST7272A

It a 3.5 inch IPS LCD screen with a resolution of 320*240. It features an RGB+SPI interface and has a brightness of 300. The screen is driven by the ST7272A driver IC.

Product Features:

IPS technology for wide viewing angles and accurate color reproduction.
3.5 inch size is suitable for a variety of applications.
Resolution of 320*240 provides clear and sharp images.
RGB+SPI interface for easy connectivity.
300 brightness offers good visibility in different lighting conditions.
Driven by the ST7272A driver IC for stable performance.

Applicable Scenarios:

Portable electronic devices such as handheld game consoles.
Industrial instrumentation for data display.
Consumer electronics with small screen requirements.

Product Parameter:

Panel Name	3.5inch LCD display
Dimensions	76.7863.743.2mm
Viewing area size	70.08*52.56mm
brightness	300 cd/m2
Resolution	320*240
working temperature	-20°C~+70°C
storage temperature	-30°C~+80°C
interface	RGB/SPI
Driver IC	ST7272A

Drawing:

3.5 Inch IPS LCD Screen 320*240 Resolution 300 Nits Display Driver IC ST7272A 0
