products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
TFT LCD Display
Created with Pixso.

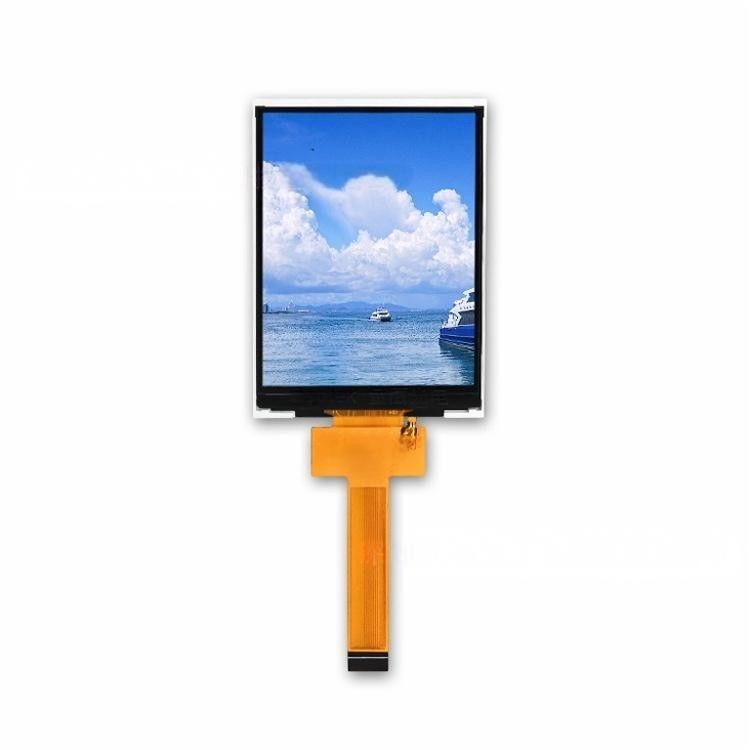

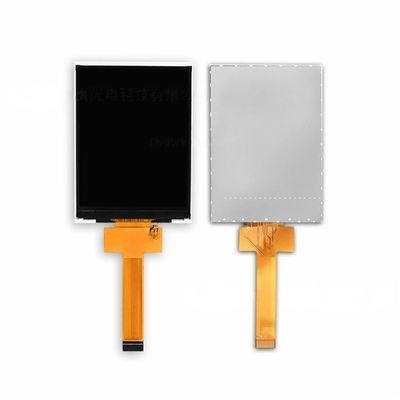

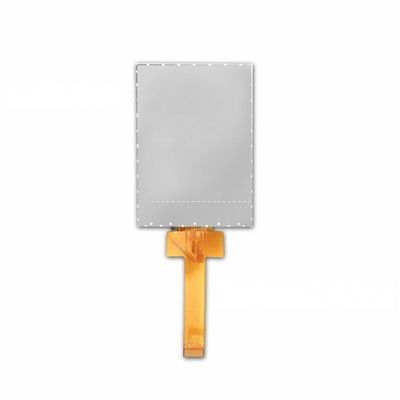

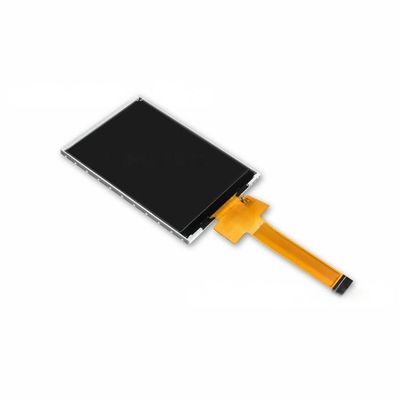

3.2 Inch TFT Display 240x320 Display 400 Cd/M2 Driver IC ST7789V2

3.2 Inch TFT Display 240x320 Display 400 Cd/M2 Driver IC ST7789V2

3.2 Inch TFT Display 240x320 Display 400 Cd/M2 Driver IC ST7789V2

Brand Name: HuaXianJing
Model Number: HXJ320B002
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO14001/ISO9001/IATF16949
Name:
TFT Display
Backlight Luminance:
400 Cd/m2
Screen Size:
3.2 Inch TFT LCD Display
Panel Size(mm):
52.8x75x2.5
Viewing Area(mm):
47.88x63.84
Display Resolution:
240X320 Pexels
Pixel Arrangement:
SPI
Driver Ic Model:
ST7789V2
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

3.2 Inch TFT Display

,

TFT Display 240x320

,

240x320 Display 400 Cd/M2

Product Description



3.2 inch TFT LCD display SPI interface resolution 240X320 400 brightness driver IC ST7789V2

This is a 3.2 inch TFT LCD display with a SPI interface and a resolution of 240x320. It has a brightness of 400 and is driven by the ST7789V2 driver IC.



Product Characteristics:



  • The TFT display provides vivid colors and sharp images.

  • The 240x320 resolution offers clear and detailed visuals.

  • The SPI interface makes it easy to connect to various devices.

  • With a brightness of 400, it is suitable for different lighting conditions.

  • The ST7789V2 driver IC ensures reliable and efficient performance.



Applicable Scenarios:



  • Can be used in portable devices such as handheld game consoles and e-readers.

  • Ideal for industrial control panels and instrumentation displays.

  • Suitable for small-sized digital signage applications.

  • Useful in automotive infotainment systems for displaying information.



Product Parameter:





Panel Name

3.2inch TFT LCD display

Dimensions

52.8x75x2.5mm

Viewing area size

47.88x63.84mm

brightness

400 cd/m2

Resolution

240X320

working temperature

-20°C~+70°C

storage temperature

-30°C~+80°C

interface

SPI

Driver IC

ST7789V2



Drawing:





3.2 Inch TFT Display 240x320 Display 400 Cd/M2 Driver IC ST7789V2 0
