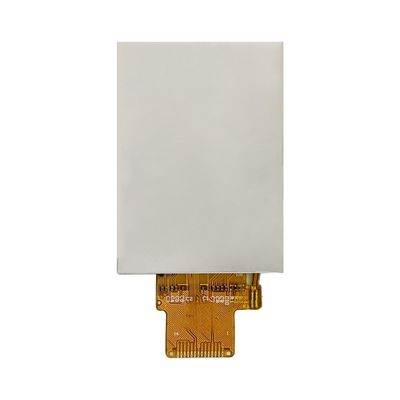

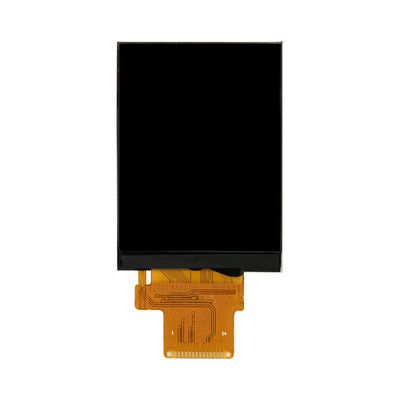

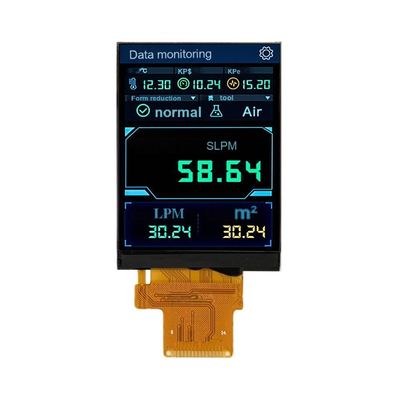

2.2 Inch TN LCD Display Resolution 240*320 SPI Interface Driver IC HX8347 180 Brightness

Brand Name:	HuaXianJing
Model Number:	HXJ043480272
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

LCD Display

Backlight Luminance:

300Cd/m2

Screen Size:

4.3 Inch

Panel Size(mm):

105.5x67.2x2.85

Viewing Area(mm):

95.04x53.856

Display Resolution:

480x272 Pexels

Interface:

MCU

Driver Ic Model:

ST7789V

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

180 brightness TN LCD display

2.2 inch TN LCD display

240*320 TN LCD display

Product Description

2.2 inch TN LCD display resolution 240*320 SPI interface driver IC HX8347 180 brightness

The 2.2 inch TN (Twisted Nematic) LCD is a compact and efficient display solution. It features a 14 - pin SPI (Serial Peripheral Interface), enabling straightforward and high - speed data transfer. With a resolution of 240×320 pixels, it offers sharp and detailed visuals, capable of presenting clear text and vivid graphics. The display has a brightness of 180 nits, providing good visibility in normal indoor environments. Driven by the HX8347 IC, it ensures stable performance and accurate color representation.

Product Features

High - Resolution Display: The 240×320 pixel resolution allows for a detailed viewing experience, making it suitable for applications that require clear visual output, such as displaying small - scale images, text - based information, or simple user interfaces.

Efficient 14 - pin SPI Interface: The SPI interface simplifies the connection process and enables fast data transfer, ensuring smooth operation of the display and seamless integration with various host devices. It reduces the complexity of the hardware design and enhances the overall system performance.

Reliable HX8347 Driver IC: The HX8347 IC provides stable driving performance, ensuring consistent color accuracy and smooth refresh rates. It effectively manages the power consumption of the display, making it energy - efficient.

Suitable Brightness Level: With a brightness of 180 nits, the display is well - suited for indoor use, where it can be easily viewed under normal lighting conditions. This makes it an ideal choice for applications in areas with controlled lighting, such as offices, homes, or indoor - only electronic devices.

Applicable Scenarios

Portable Electronic Devices: It is perfect for use in handheld devices like MP3 players, portable gaming consoles, and digital cameras. The compact size and high - resolution display can provide users with clear visual feedback during operation. For example, in a portable gaming console, it can display detailed game scenes and user - control interfaces.

Industrial Control and Monitoring Devices: In industrial settings, it can be used in small - scale control panels or monitoring devices. Workers can use it to view real - time data, status indicators, or control commands. The reliable SPI interface and stable driver IC ensure smooth operation in industrial environments.

Educational Electronics and DIY Projects: In educational kits and DIY projects, this display can be used to teach students about display technology, embedded systems, and programming. Its easy - to - use SPI interface and relatively simple operation make it accessible for beginners. For instance, students can use it to create custom - designed displays for their projects, such as a small - scale weather monitor or a simple digital clock.

Product Parameter

Panel Name	2.2inch TN LCD Display
Dimensions	38.0453.672.50mm
Viewing area size	33.48*44.64mm
Backlight Luminance	180Cd/m2
Resolution	240*320
working temperature	-20°C~+70°C
storage temperature	-30°C~+80°C
interface	SPI
Driver IC	HX8347

Drawing

2.2 Inch TN LCD Display Resolution 240*320 SPI Interface Driver IC HX8347 180 Brightness 0
