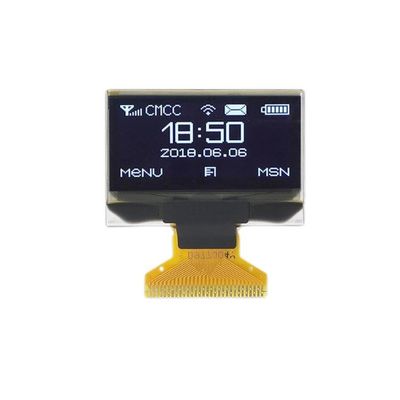

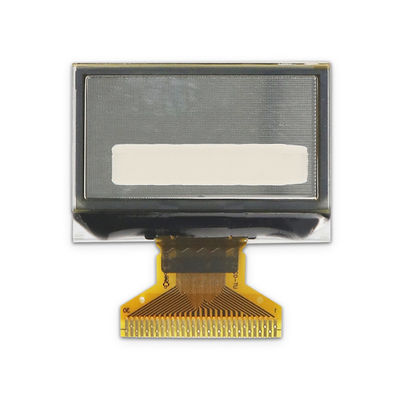

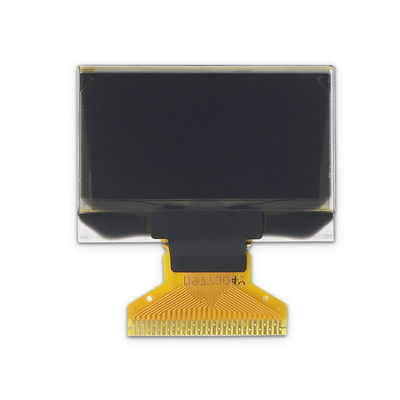

128x64 OLED Display 30 Pin Display 1.3 Inch 100 Brightness Driver IC SSD1306

Brand Name:	HuaXianJing
Model Number:	HXJ1286401301
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

OLED Display

Backlight Luminance:

100 Cd/m2

Screen Size:

1.3-inch OLED Display

Panel Size(mm):

34.50*23.00*1.45

Viewing Area(mm):

29.42*14.7

Display Resolution:

128x64 Pexels

Pixel Arrangement:

SPI/I2C

Driver Ic Model:

SSD1306/SSH1306

Viewing Angle:

All

Number Of Pins:

30 PIN

Transmittance:

78%

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

128x64 OLED Display

OLED Display 30 Pin

Display 1.3 Inch

Product Description

1.3 inch OLED display module 128X64 resolution 30pin SPI/I2C interface 100 brightness driver IC SSD1306

The 1.3 inch OLED display module showcases a sleek and modern design. With a resolution of 128x64, it provides clear and distinct visuals. It features a 30-pin interface that supports both SPI and I2C protocols. Boasting a brightness of 100, it offers good visibility in various settings. Driven by the SSD1306 driver IC, this display module is a reliable choice for a wide range of applications.

Product Features:

Compact 1.3 inch size for space-efficient designs.
Resolution of 128x64 for sharp image display.
30-pin interface with SPI/I2C compatibility for easy integration.
Brightness of 100 for decent visibility.
Powered by the SSD1306 driver IC for stable performance.

Application Scenarios:

Smart home devices for intuitive displays.
Portable electronics for on-the-go information.
Fitness bands for displaying workout stats.
Industrial control panels for status updates.
Medical devices for patient data display.

Product Parameter:

Panel Name	1.3inch OLED display module
Dimensions	34.5023.001.45mm
Viewing area size	29.42*14.7mm
Working Mode	OLED White
working temperature	-40°C~+70°C
storage temperature	-40°C~+85°C
interface	SPI/I2C
Driver IC	SSD1306/SSH1306

Drawing:

128x64 OLED Display 30 Pin Display 1.3 Inch 100 Brightness Driver IC SSD1306 0
