OLED Display Module
Created with Pixso.

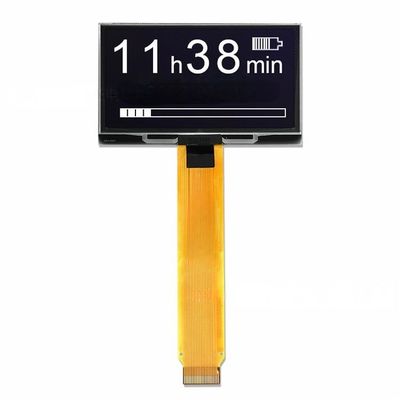

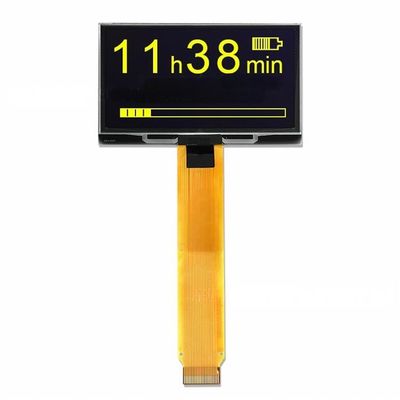

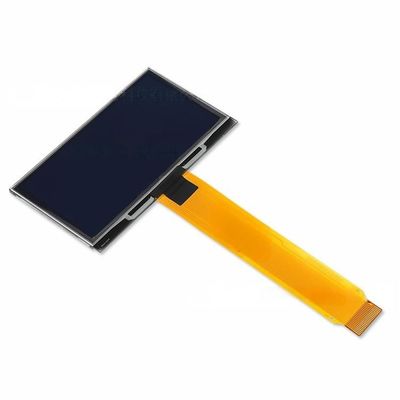

2.6 inch Yellow Oled Display 128x64 OLED Module 80 Cd/m2 Driver IC SSD1309

2.6 inch Yellow Oled Display 128x64 OLED Module 80 Cd/m2 Driver IC SSD1309

2.6 inch Yellow Oled Display 128x64 OLED Module 80 Cd/m2 Driver IC SSD1309

Brand Name: HuaXianJing
Model Number: HXJ260-12864Y001
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO14001/ISO9001/IATF16949
Name:
Yellow Oled Display
Backlight Luminance:
80 Cd/m2
Screen Size:
2.6inch OLED Display Module
Panel Size:
64.61（W) X 37.0(H) X 2.02(D)
Viewing Area:
58.85(W) X 29.41(H)
Display Resolution:
128X64 Pexels
Pixel Arrangement:
MCU/SPI/I²C
Driver Ic Model:
SPD0301
Number Of Pins:
20 PIN
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

2.6 inch Yellow Oled Display

,

Yellow Oled Display 128x64

,

OLED Module 80 Cd/m2

Product Description



2.6 inch OLED Display Module resolution 128*64 driver IC SSD1309 yellow OLED display

It a 2.6 inch OLED Display Module with a resolution of 128*64. Powered by the SSD1309 driver IC, this is a yellow OLED display.



Product Characteristics:



  • Offers high contrast and vivid colors typical of OLED technology.

  • The 128*64 resolution provides sharp and clear visuals.

  • The SSD1309 driver IC ensures stable performance and efficient power consumption.

  • The yellow color gives a unique and eye-catching look.



Applicable Scenarios:



  • Perfect for wearable devices where a compact and colorful display is needed.

  • Can be used in portable music players for a sleek user interface.

  • Suitable for small home automation displays to show status and controls.

  • Ideal for low-power applications where energy efficiency is crucial.



Product Parameter:











Panel size

2.6inch OLED Display Module

Dimensions

64.61(W) x 37.0(H) x 2.02(D)

Viewing area size

58.85(W) x 29.41(H)

brightness

80 cd/m2

Resolution

128X64

working temperature

-40°C~+70°C

storage temperature

-40°C~+85°C

Pins

20pin

interface

MCU/SPI/I²C

Driver IC

SPD0301



Drawing:





2.6 inch Yellow Oled Display 128x64 OLED Module 80 Cd/m2 Driver IC SSD1309 0
