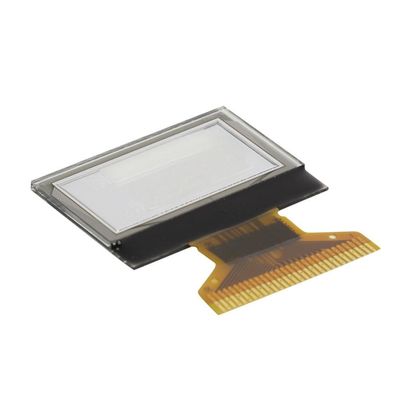

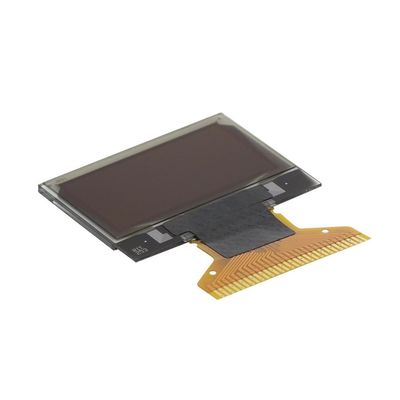

0.96 SPI OLED Display Module 30 Pin 128x64 Driver IC SSD1306

0.96 inch OLED display module 30PIN I2C/SPI interface 128x64 resolution white/blue/yellow-blue tri-color display Driver IC SSD1306

This 0.96-inch OLED display module is a remarkable piece of technology, designed to meet the diverse display needs of various projects. It comes equipped with a 30PIN interface, offering flexible connection options via either I2C or SPI protocols, which simplifies the integration process into different electronic systems.

Product Features

• High-Resolution Display: With a resolution of 128x64, it can present sharp and clear visuals, enabling detailed graphics, text, and icons to be shown precisely. Whether it's for simple status indicators or more complex data visualizations, this resolution gets the job done.

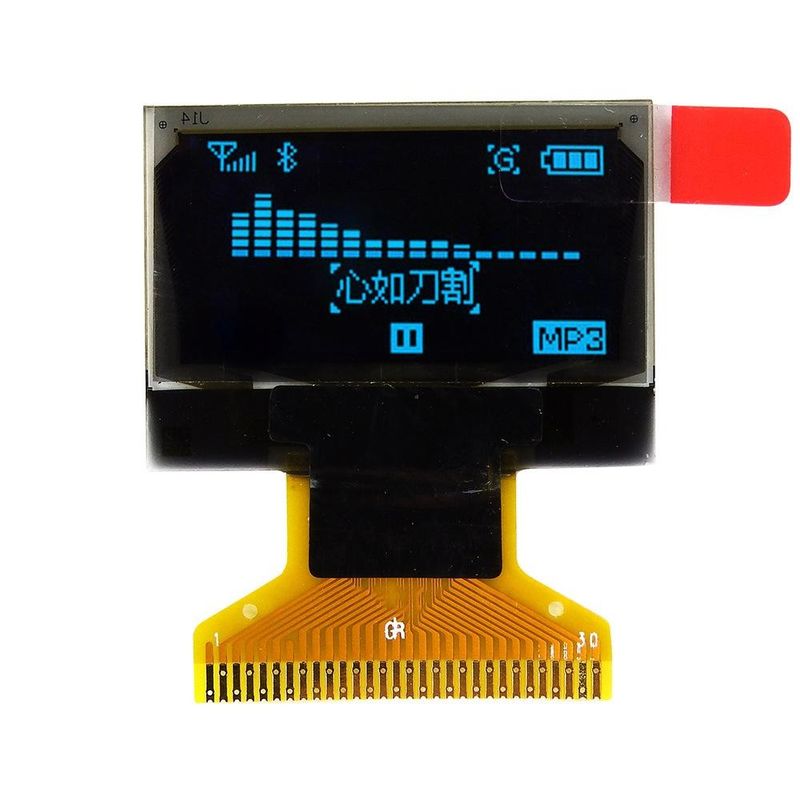

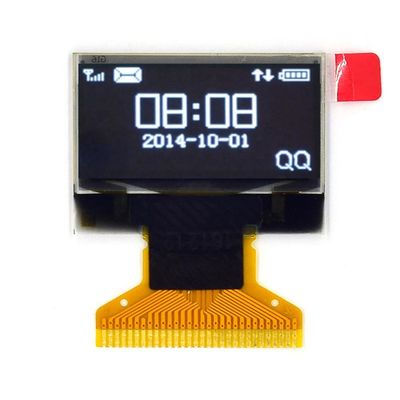

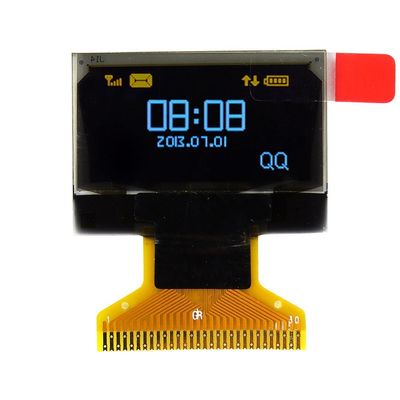

• Tri-Color Options: The display offers white, blue, and yellow-blue tri-color display capabilities. This allows for more creative and distinguishable visual outputs, depending on the application's specific color-coding requirements.

• Powerful Driver IC: Incorporating the SSD1306 driver IC, it ensures stable and efficient operation. The driver chip manages the power consumption optimally while facilitating seamless communication between the microcontroller and the OLED panel, guaranteeing smooth image updates.

Applicable Scenarios

• Wearable Devices: Ideal for smartwatches or fitness trackers, where it can display time, step counts, heart rate, and other key metrics in a clear and energy-efficient manner. The small size and low power consumption of the module make it a perfect fit for battery-powered wearable gadgets.

• IoT Sensor Hubs: In IoT applications, it can be used to show sensor data such as temperature, humidity, or air quality readings at a glance. The tri-color feature can be used to quickly signal normal or abnormal states of the monitored parameters.

• DIY Electronics Projects: A great choice for hobbyists and makers. Whether building a custom-made digital clock, a mini weather station, or a small gaming console, its easy-to-use interface and versatile display options offer endless possibilities for creative projects.

Product Parameter

Drawing
