products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
OLED Display Module
Created with Pixso.

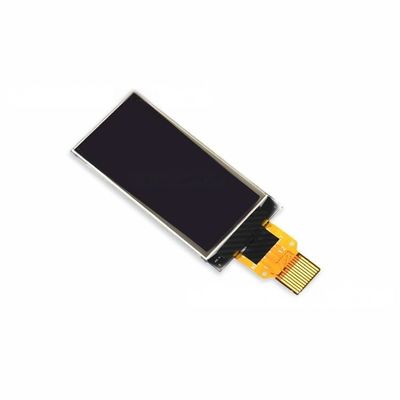

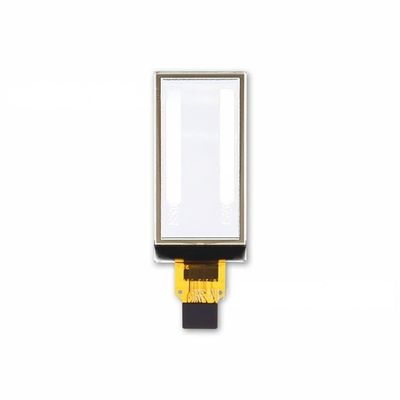

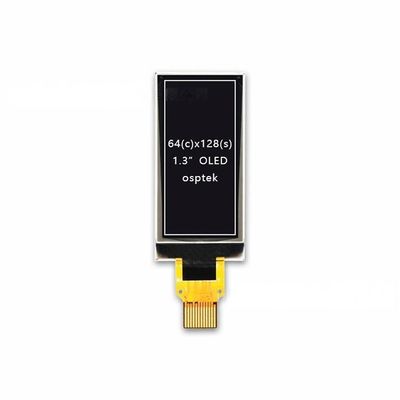

1.3 Inch OLED Display Module 64x128 OLED 80 Cd/m2 White Light SSD1312

1.3 Inch OLED Display Module 64x128 OLED 80 Cd/m2 White Light SSD1312

1.3 Inch OLED Display Module 64x128 OLED 80 Cd/m2 White Light SSD1312

Brand Name: HuaXianJing
Model Number: HXJ130-64128W006
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO14001/ISO9001/IATF16949
Name:
OLED Display Module
Backlight Luminance:
80 Cd/m2
Screen Size:
1.3 Inch OLED Display Module
Panel Size:
17.1(W)x35.8(H)x1.43(D)
Viewing Area:
14.06(W)x29.42(H)
Display Resolution:
64X128 Pexels
Pixel Arrangement:
SPI/I2C
Driver Ic Model:
SD1312
Number Of Pins:
13 PIN
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

1.3 Inch OLED Display Module

,

OLED Display Module 64x128

,

64x128 OLED 80 Cd/m2

Product Description



1.3 inch OLED Display Module with 64*128 resolution white light SSD1312 driver 12P plug-in interface

This is a 1.3 inch OLED Display Module that offers a resolution of 64*128. It emits white light and is driven by the SSD1312 driver. The display comes with a 12P plug-in interface for easy connection.



Product Characteristics:



  • High-resolution 64*128 display for clear and detailed visuals.

  • White light provides a bright and crisp viewing experience.

  • SSD1312 driver ensures stable and efficient performance.

  • 12P plug-in interface offers convenient installation and compatibility.



Applicable Scenarios:



  • Wearable devices such as smartwatches and fitness trackers for displaying essential information.

  • Portable electronics like MP3 players and handheld gaming consoles for enhanced user interfaces.

  • Industrial instruments and control panels where a compact and clear display is needed.

  • Medical devices for easy readability of patient data.



Product Parameter:









Panel size

1.3inch OLED Display Module

Dimensions

17.1(W)x35.8(H)x1.43(D)

Viewing area size

14.06(W)x29.42(H)

brightness

80 cd/m2

Resolution

64X128

working temperature

-40°C~+70°C

storage temperature

-40°C~+85°C

Pins

13pin

interface

SPI/I2C

Driver IC

SD1312



Drawing:



1.3 Inch OLED Display Module 64x128 OLED 80 Cd/m2 White Light SSD1312 0

Tags:

OLED Screen Module

OLED Display Panel

High Resolution OLED Display
