1.5 Inch OLED Module 128x128 OLED Display 500 Cd/m2 25PIN SPI/I2C Interface

Brand Name:	HuaXianJing
Model Number:	HXJ128128KSWHG01015A
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

OLED Module

Backlight Luminance:

500 Cd/m2

Screen Size:

1.5 Inch OLED Display Module

Panel Size(mm):

33.8*36.5*1.41

Viewing Area(mm):

26.86*26.86

Display Resolution:

128x128 Pexels

Pixel Arrangement:

SPI/I2C

Driver Ic Model:

SSD1327

Viewing Angle:

All

Number Of Pins:

25 PIN

Transmittance:

82%

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

1.5 Inch OLED Module

128x128 OLED Display

OLED Display 500 Cd/m2

Product Description

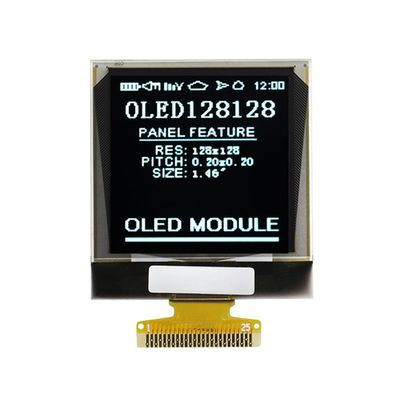

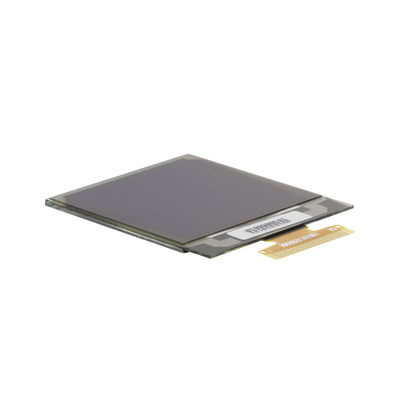

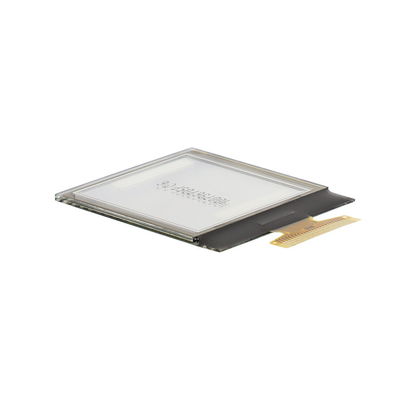

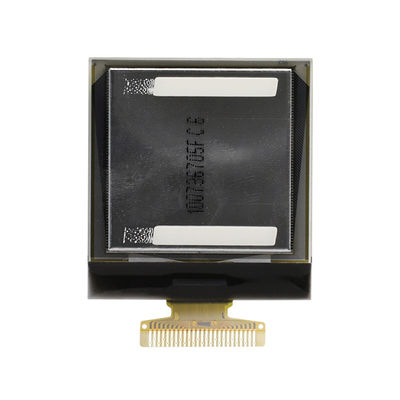

1.5 inch OLED display module 128X128 resolution 500 brightness 25PIN SPI/I2C interface driver IC SSD1327

The 1.5 inch OLED display module offers a stunning visual experience. With a resolution of 128x128, it presents sharp and clear images. The brightness of 500 ensures excellent visibility even in challenging lighting conditions. It features a 25PIN interface with support for SPI and I2C protocols and is driven by the SSD1327 driver IC.

Product Features:

1.5 inch size for compact and portable applications.
High resolution of 128x128 for detailed visuals.
Brightness of 500 for enhanced visibility.
25PIN interface with SPI/I2C options for flexible connectivity.
Driven by the reliable SSD1327 driver IC.

Application Scenarios:

Wearable devices for clear and concise information display.
Portable medical devices for easy-to-read data.
Smartwatches and fitness trackers for vivid visuals.
Industrial sensors for status indication.
Handheld gaming consoles for immersive displays.

Product Parameter:

Panel Name	1.5inch OLED display module
Dimensions	33.836.51.41mm
Viewing area size	26.86*26.86mm
Working Mode	OLED White
working temperature	-30°C~+70°C
storage temperature	-40°C~+80°C
interface	SPI/I2C
Driver IC	SSD1327
