products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
OLED Display Module
Created with Pixso.

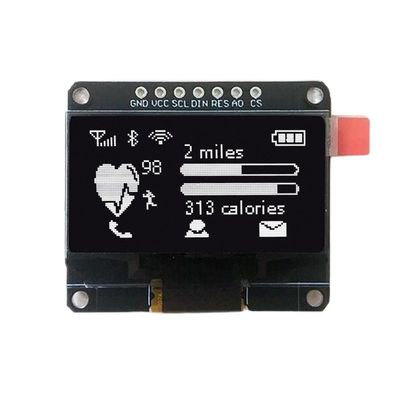

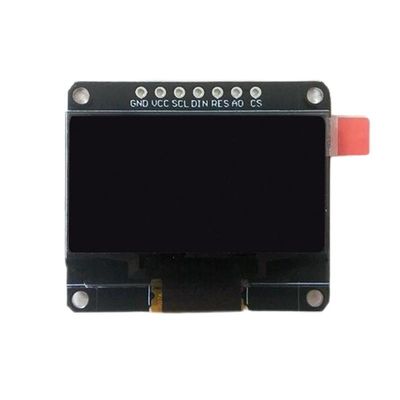

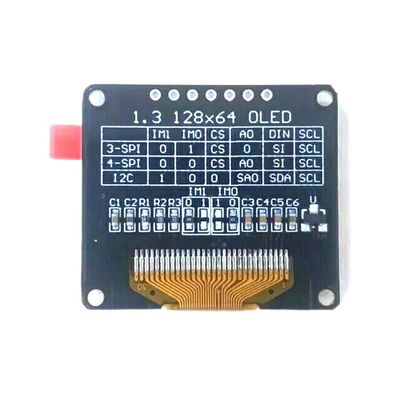

1.3 Inch OLED Display Module 350 Cd/M2 SSD1306 OLED Display 7 Pin Spi Interface

1.3 Inch OLED Display Module 350 Cd/M2 SSD1306 OLED Display 7 Pin Spi Interface

1.3 Inch OLED Display Module 350 Cd/M2 SSD1306 OLED Display 7 Pin Spi Interface

Brand Name: HuaXianJing
Model Number: HXJ12864013V10
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO14001/ISO9001/IATF16949
Name:
OLED Display Module
Backlight Luminance:
350 Cd/m2
Screen Size:
1.3 Inch OLED Display Module
Panel Size:
35.40*33.50*1.51mm
Viewing Area:
31.42*16.70mm
Display Resolution:
128X64 Pexels
Pixel Arrangement:
SPI
Driver Ic Model:
SSD1306
Number Of Pins:
7 PIN
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

1.3 Inch OLED Display Module

,

OLED Display Module 350 Cd/m2

,

SSD1306 OLED Display 7 Pin

Product Description

1.3 inch OLED Display Module SSD1306 driver IC 7pin spi interface white display 350 brightness



The 1.3 inch OLED Display Module is a high-quality display with a sleek design. It is driven by the SSD1306 driver IC and features a 7-pin SPI interface. The white display offers a bright and clear visual experience with a brightness of 350.



Product Features:



  • 1.3 inch size for a compact and portable display solution.

  • SSD1306 driver IC for stable and reliable performance.

  • 7-pin SPI interface for easy integration into various systems.

  • White display for a clean and crisp look.

  • High brightness of 350 for excellent visibility in different lighting conditions.



Application Scenarios:



  • Wearable devices such as smartwatches and fitness trackers.

  • Portable electronics like MP3 players and e-readers.

  • Instrument panels and small displays in industrial equipment.

  • DIY projects and hobbyist electronics for creating unique and functional displays.



Product Parameter:













Panel size

1.3inch OLED Display Module

Dimensions

35.40*33.50*1.51mm

Viewing area size

31.42*16.70mm

brightness

350 cd/m2

Resolution

128X64

working temperature

-30°C~+70°C

storage temperature

-40°C~+80°C

Pins

7pin

interface

SPI

Driver IC

SSD1306



Drawing:



1.3 Inch OLED Display Module 350 Cd/M2 SSD1306 OLED Display 7 Pin Spi Interface 0
