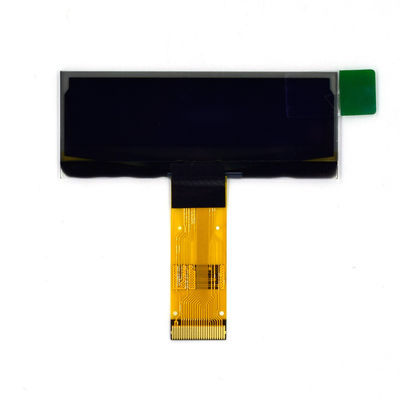

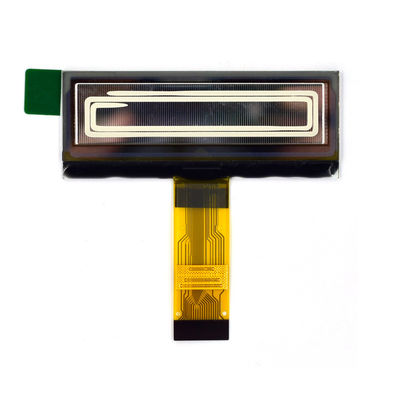

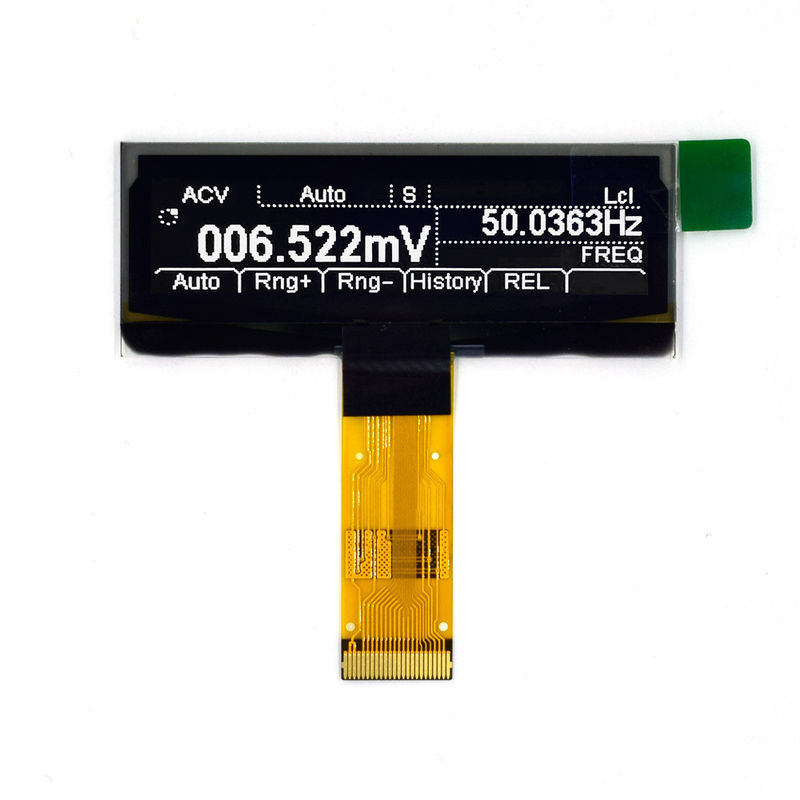

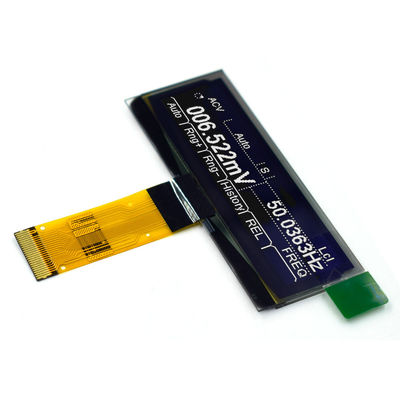

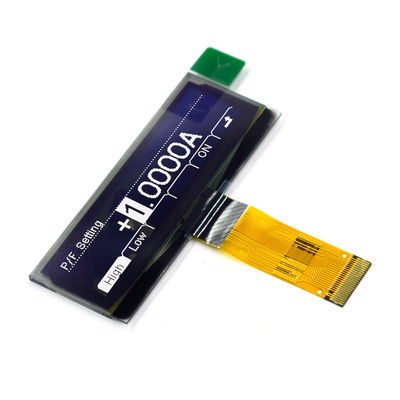

2.23 Inch OLED Screen Module 128x32 I2C OLED Display Driver IC SSD1305

Brand Name:	HuaXianJing
Model Number:	HXJ128320223WTAN001A
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Name:

OLED Screen Module

Backlight Luminance:

200 Cd/m2

Screen Size:

2.23 Inch OLED Display Module

Panel Size:

62.0*24.0*2.0mm

Viewing Area:

57.02*15.10mm

Display Resolution:

128X32 Pexels

Pixel Arrangement:

SPI/I2C/IIC

Driver Ic Model:

SSD1305

Number Of Pins:

24 PIN

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

2.23 Inch OLED Screen Module

OLED Screen Module 128x32

128x32 I2C OLED Display

Product Description

2.23 inch OLED Display Module SPI/I2C/IIC interface white light display driver IC SSD1305 128x32 resolution and 200 brightness

The 2.23 inch OLED Display Module offers a high-quality visual experience with its white light display. It features the SSD1305 driver IC and can be connected via SPI/I2C/IIC interfaces. With a resolution of 128x32 and a brightness of 200, it provides clear and distinct visuals.

Product Features:

2.23 inch size for a compact and portable display.
White light display for enhanced visibility.
Supports SPI/I2C/IIC interfaces for easy integration.
Driver IC SSD1305 for stable and reliable performance.
Resolution of 128x32 for detailed images and text.
Brightness of 200 for good visibility in various lighting conditions.

Application Scenarios:

Wearable devices such as smartwatches and fitness trackers.
Portable electronics like MP3 players and handheld gaming consoles.
Industrial instrumentation for displaying status and data.
Small-sized embedded systems where space is limited.

Product Parameter:

Panel size	2.23inch Display Module
Dimensions	62.024.02.0mm
Viewing area size	57.02*15.10mm
brightness	200 cd/m2
Resolution	128X32
working temperature	-20°C~+70°C
storage temperature	-30°C~+80°C
Pins	24pin
interface	SPI/I2C/IIC
Driver IC	SSD1305

Drawing:
