Ultra Wide Temperature LCD Module
Created with Pixso.

4.3 Inch Ultra Wide Temperature IPS TFT LCD Module 1000 Nits 800x480 Pixels

4.3 Inch Ultra Wide Temperature IPS TFT LCD Module 1000 Nits 800x480 Pixels

Brand Name: HuaXianJing
Model Number: HXJ43800480
MOQ: 1000
Price: Negotiated
Payment Terms: T/T
Supply Ability: 100K per month
Detail Information
Place of Origin:
China
Certification:
ISO9001/IATF16949/ISO14001
Name:
Capacitive Touch Screen
Backlight Luminance:
1000 Cd/m2
Screen Size:
4.3 Inch Car Display Screen
Panel Size(mm):
105.5*67.2*2.8
Viewing Area(mm):
95.04*53.856
Display Resolution:
800X480 Pexels
Pixel Arrangement:
RGB/I2C
Driver Ic Model:
ST7262
Packaging Details:
blister+foam box+bubble bag+inside carton+master carton
Supply Ability:
100K per month
Highlight:

1000 Nits 4.3 inch lcd module

,

800x480 4.3 inch tft lcd module

,

Ultra Wide Temperature 1.8 tft module

Product Description



  • LCD Display Manufacturer: 4.3 - inch 800x480 Ultra Wide - Temperature IPS TFT LCD Module, 1000 Nits for Automotive Screen and Industrial Control

    It is a 4.3 - inch TFT LCD display with a resolution of 800x480. It features a 40 - pin RGB interface and a remarkable brightness of 1000 nits. It is driven by the NV3047 driver IC.

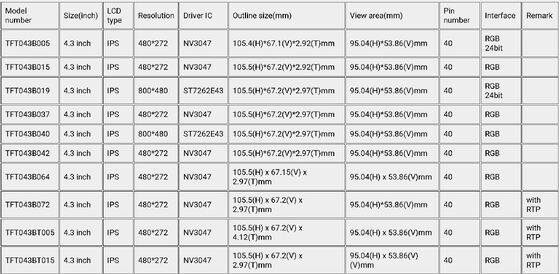

    This LCD module currently has 3 different variations. Their common attributes are:

     LCD Type: IPS, Full Color;

     Pin Number: 40 Pins;

     View Area: 95.04(H)*53.86(V)mm;

     Interface: RGB.

    Similarly, since different customers have different needs, this 4.3 - inch TFT LCD Module also has different attributes:

     Resolution: 480*272 / 800*480;

     Driver IC: NV3047 / ST7262E43;

     Outline Size: 105.4(H)*67.1(V)*2.92(T)mm / 105.5(H)*67.2(V)*2.97(T)mm.

    Product Features:

    Large Display Size: The 4.3 - inch screen provides an immersive viewing experience.

     High Resolution (480*800): Delivers clear and detailed images.

     40 - pin RGB Interface: Ensures seamless connectivity and compatibility.

    High Brightness (1000 nits): Visible even in well - lit environments.

     NV3047 Driver IC: Guarantees stable and efficient performance.

    - 30°C~ + 85°C Ultra - wide temperature range suitable for automotive and industrial control.

    Applicable Scenarios:

     Portable Gaming Devices: For vivid game graphics.

     Automotive Infotainment Systems: Displays navigation, entertainment, and vehicle information.

     Industrial Monitoring Equipment: To show real - time data and status.

     Medical Devices: Presents clear diagnostic images and information.



Product Parameter

Panel Name

4.3 inch car display screen

Dimensions

105.5*67.2*2.8mm

Viewing area size

95.04*53.856mm

Backlight Luminance

1000Cd/m2

Resolution

800X480

working temperature

-30°C~+80°C

storage temperature

-30°C~+80°C

interface

RGB/I2C

Driver IC

ST7262

Drawing

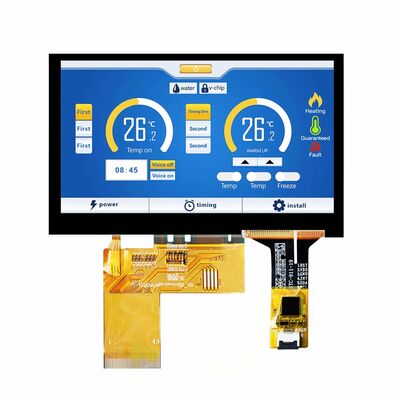

4.3 Inch Ultra Wide Temperature IPS TFT LCD Module 1000 Nits 800x480 Pixels 0

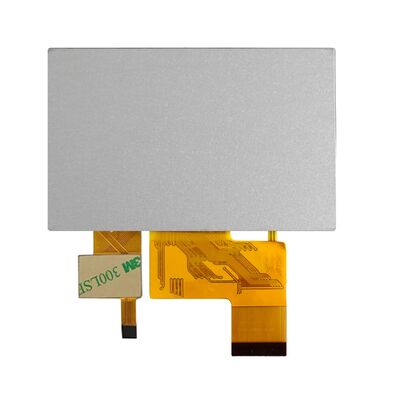

4.3 Inch Ultra Wide Temperature IPS TFT LCD Module 1000 Nits 800x480 Pixels 1
