| Brand Name: | HuaXianJing |
| Model Number: | HXJ0350BH |
| MOQ: | 1000 |
| Price: | Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 100K per month |

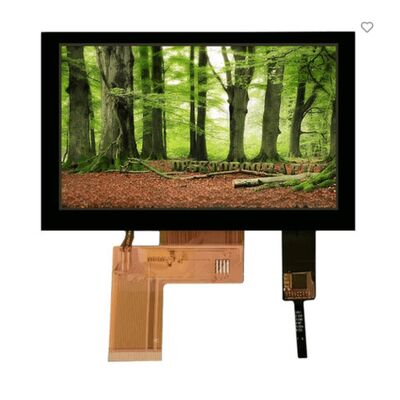

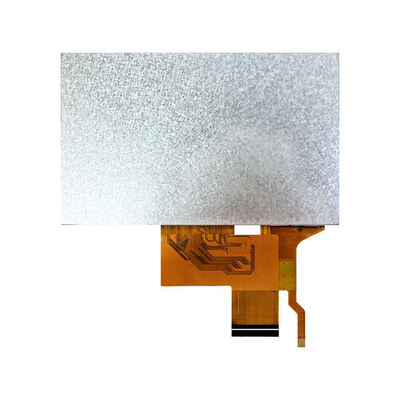

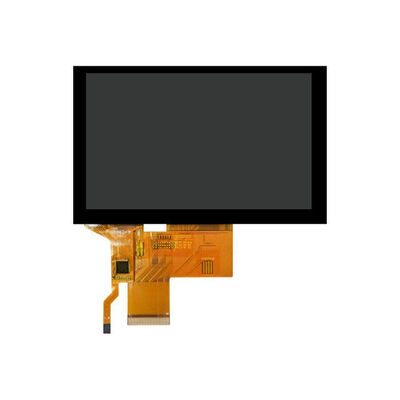

The TFT050XUB067 is a 5.0 inch IPS TFT LCD module with 800x480 resolution and 1000 cd/m² high brightness, delivering vivid color and wide viewing angles. Designed with the ILI6485D driver IC and RGB 24-bit interface, it provides stable, high-quality display performance for industrial and outdoor applications.
The 5.0 inch TFT050XUB067 module features IPS full viewing angle technology (All O’Clock viewing direction) for consistent and accurate color reproduction from any direction.
With 16 white LEDs (12V / 120mA) backlight and 1000 cd/m² minimum luminance, it ensures excellent sunlight readability, making it ideal for outdoor and industrial environments.
The ILI6485D driver IC supports RGB-565 parallel interface with strong compatibility across multiple control boards.
The display’s Normally Black mode provides high contrast and deep color tone, while the operating temperature range from –35°C to +85°C guarantees reliable performance in extreme conditions.
5.0 inch TFT LCD, 800x480 resolution – Clear and vivid visual performance.
IPS full viewing angle (All O’Clock) – Uniform brightness and color from any direction.
High brightness: 1000 cd/m² (typ.) – Excellent readability under sunlight.
Driver IC: ILI6485D – Stable performance and broad MCU compatibility.
16 white LED backlight, 12V / 120mA – Long life and low power consumption.
Wide temperature range: –35°C to +85°C – Industrial-grade reliability.
RGB 24-bit interface (RGB-565) – Suitable for a wide range of embedded systems.
Outdoor Industrial Equipment – Control panels, data loggers, diagnostic devices.
Smart Home and Building Control Systems – Wall-mounted control units and energy monitors.
Automotive Displays – Instrument and infotainment interfaces.
Handheld Devices and Terminals – Portable measurement and control devices.
Medical and Diagnostic Equipment – High-brightness GUI display screens.
|
Parameter |
Specification |
|
Model Number |
TFT050BH002 |
|
Display Type |
TFT, IPS, Transmissive |
|
Display Size |
5.0 inch (Diagonal) |
|
Resolution |
800×RGB×480 |
|
Display Mode |
Normally Black |
|
Viewing Angle |
All Viewing Direction (IPS) |
|
Brightness |
1000 cd/m² (Typ.) |
|
Driver IC |
ILI6485D |
|
Interface |
RGB-565 Parallel |
|
Backlight Type |
16 White LEDs |
|
Backlight Voltage / Current |
12V / 120mA |
|
Operating Temperature |
–35°C ~ +85°C |
|
Storage Temperature |
–40°C ~ +85°C |
|
Outline Dimensions (OD) |
120.65(W) × 75.8(H) × 4.9(T) mm |
|
Active Area (AA) |
110.88(W) × 62.83(H) mm |
|
Surface Treatment |
Anti-glare, Hard coating |
|
Compliance |
RoHS / REACH Certified |
