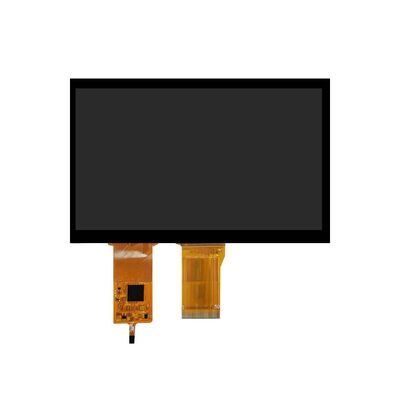

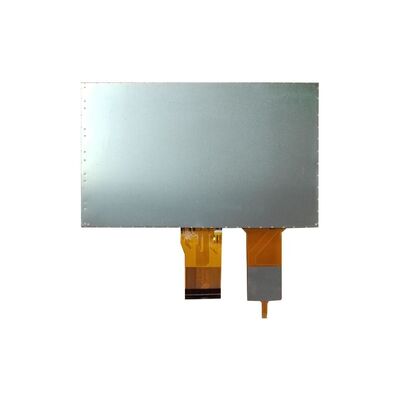

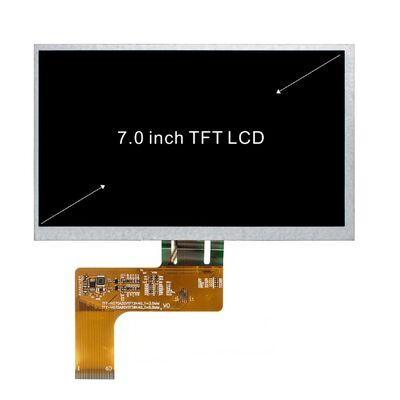

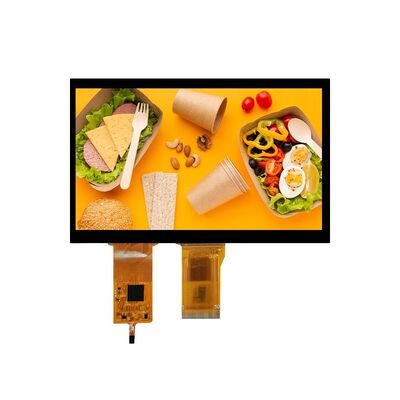

7.0 Inch 1024x600 Pixels IPS TFT LCD Module 1000 Nits Ultra Wide Temperature

7.0 Inch TFT LCD Display Module, 1024×600 Resolution, High Brightness, Wide Temperature

Detailed Product Description

This 7.0 inch TFT LCD display module is designed as a high-end solution for industrial, automotive, and outdoor-oriented applications where high brightness and extreme temperature reliability are critical requirements. Featuring a 1024×600 native resolution, the display provides sharp image detail, clear text rendering, and a balanced aspect ratio suitable for modern graphical user interfaces and data-rich display layouts.

The module adopts IPS TFT technology with full viewing direction, ensuring stable color performance and consistent luminance from all angles. This makes it especially suitable for control panels, vehicle-mounted systems, and equipment interfaces that must remain readable regardless of user position or installation orientation.

A key highlight of this model is its high brightness backlight system, delivering a minimum luminance of 1000 cd/m². This level of brightness ensures excellent visibility in strong ambient light conditions, including automotive cabins, industrial workshops, and semi-outdoor environments. The backlight is built using 40 white LEDs in a carefully engineered configuration, providing uniform illumination and long-term reliability. Typical backlight input current is 150 mA, balancing brightness performance and power efficiency.

Equally important is the module’s ultra-wide operating temperature range from -30°C to +85°C. This capability enables stable operation in harsh environments, such as cold storage facilities, outdoor installations in winter climates, and high-temperature industrial settings. The wide temperature design significantly improves system reliability, reduces failure risk, and supports long service life in demanding applications.

From a mechanical and electrical perspective, the module is engineered for professional integration. The active display area measures approximately 154.21 × 85.92 mm, while the overall LCM outline is about 164.90 × 100.00 mm, allowing straightforward installation into standard 7-inch display enclosures. The interface is based on MIPI DSI, offering high-speed data transmission and compatibility with a wide range of modern embedded processors and system platforms.

The display operates in transmissive normally black mode, providing deep black levels and enhanced contrast for improved visual comfort. With support for 16.7 million colors, the module delivers smooth gradients and accurate color reproduction, meeting the expectations of high-quality industrial and commercial display products. The design complies with RoHS requirements and is suitable for long-term supply programs.

Features

• 7.0 inch TFT LCD display module

• 1024 × 600 high-resolution panel

• High brightness design, 1000 cd/m² minimum

• Ultra-wide operating temperature: -30°C to +85°C

• IPS technology with full viewing direction

• 16.7 million colors for rich image performance

• MIPI DSI interface for high-speed signal transmission

• Transmissive normally black display mode

• Robust structure for industrial and automotive use

• RoHS compliant, suitable for long-term projects

•

Applications

• Automotive infotainment and in-vehicle displays

• Industrial control terminals and HMI panels

• Outdoor and semi-outdoor equipment interfaces

• Medical and measurement instruments

• Smart home control panels and professional devices

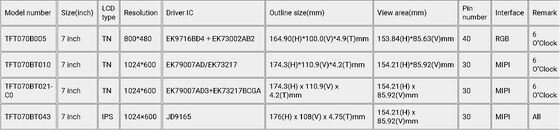

Technical Specifications
