5.4 Inch Dot Matrix Display 22 Pin Parallel Port Interface STN/yellow-green/blue Mode Three Display Modes Driver IC LC7981 Resolution: 240*64 Brightness 350 With PCB Board

5.4 Inch Dot Matrix Display 22 Pin Parallel Port Interface STN/yellow-green/blue Mode Three Display Modes Driver IC LC7981 Resolution: 240*64 Brightness 350 With PCB Board

Brand Name:	HuaXianJing
Model Number:	HXJ24064AV20
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Screen Size:

5.4inch Dot Matrix Display

Backlight Luminance:

350 Cd/m2

Panel Size(mm):

180.0*65.0*12.5

Viewing Area(mm):

132.6*39.0

Display Resolution:

240*64 Pexels

Interface:

Parallel

Driver Ic:

LC7981

Number Of Pins:

22pin

Display Mode:

STN/yellow-green/blue

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

5.4 inch dot matrix display

blue mode dot matrix display

5.4inch dot matrix display

Product Description

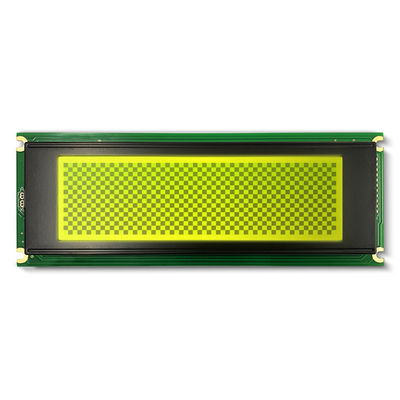

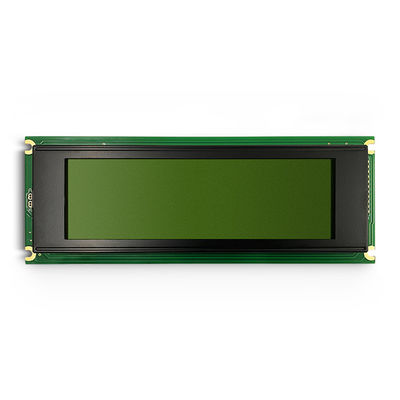

5.4 inch dot matrix display 22pin parallel port interface, STN/yellow-green/blue mode Three display modes Driver IC LC7981 Resolution: 240*64 Brightness: 350 With PCB board

This 5.4 inch dot - matrix display features a 22 - pin parallel interface, enabling fast data transfer and seamless connection to various devices. It offers three display modes: STN, yellow - green, and blue mode, catering to diverse visual requirements. Driven by the LC7981 IC, it ensures stable display performance and accurate color reproduction. With a resolution of 240*64 pixels, it can clearly present image and text information. The brightness of 350 makes it highly visible in various lighting conditions, and it comes with a PCB board for convenient installation and use.

Product Features

Diverse Display Modes: The three display modes of STN, yellow - green, and blue mode allow users to freely switch according to different usage scenarios and preferences, meeting personalized needs.

Efficient Parallel Interface: The 22 - pin parallel interface enables high - speed data transmission, ensuring smooth and stable display of images and improving the overall operation efficiency of the device.

Stable Driving Performance: The LC7981 driver IC provides stable driving capabilities, ensuring uniform colors, clear display, and reducing screen flickering and distortion.

Clear Display Effect: With a resolution of 240*64 pixels and a brightness of 350, whether it is displaying text, icons, or simple graphics, it can present delicate and clear visual effects.

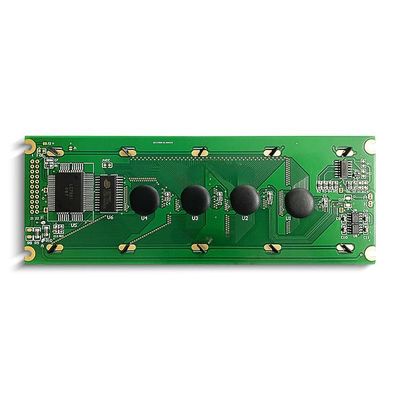

Integrated PCB Board: The built - in PCB board reduces additional assembly steps, simplifies the installation process, and enhances the stability and reliability of the product.

Applicable Scenarios

Industrial Control Equipment: In industrial production environments, it is used for various control panels and instruments. It can clearly display operating parameters, operation instructions, and other information, and its multiple display modes can adapt to different industrial scene requirements.

Medical Instruments: Suitable for small medical devices such as blood pressure monitors and blood glucose meters. The high - definition and stable display effect facilitate medical staff and patients to read data, and the built - in PCB board also meets the requirements of medical devices for stability and reliability.

Consumer Electronics: Products such as electronic dictionaries and handheld game consoles. The rich display modes and clear pictures can bring users a better experience, meeting daily entertainment and learning needs.

Product Parameter

Panel Name	5.4inch dot matrix display
Dimensions	180.065.012.5mm
Viewing area size	132.6*39.0mm
brightness	350 cd/m2
Resolution	240*64
working temperature	-20°C~+70°C
storage temperature	-30°C~+80°C
interface	parallel
Driver IC	LC7981
Display mode	STN/yellow-green/blue

Drawing

5.4 Inch Dot Matrix Display 22 Pin Parallel Port Interface STN/yellow-green/blue Mode Three Display Modes Driver IC LC7981 Resolution: 240*64 Brightness 350 With PCB Board 0
