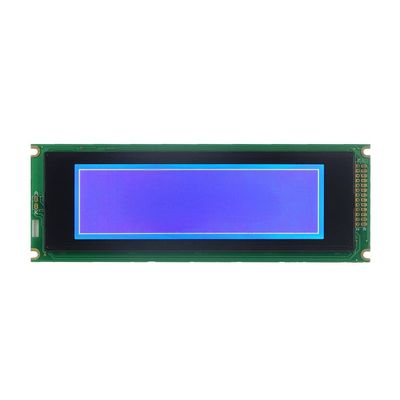

5.4 Inch STN Display With Font Library Driver IC RA8822 36pin Parallel Port Interface Resolution Is 240*64 Brightness 350 With PCB Board

5.4 Inch STN Display With Font Library Driver IC RA8822 36pin Parallel Port Interface Resolution Is 240*64 Brightness 350 With PCB Board

Brand Name:	HuaXianJing
Model Number:	HXJ24064BZKV20
MOQ:	1000
Price:	Negotiated
Payment Terms:	T/T
Supply Ability:	100K per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14001/ISO9001/IATF16949

Screen Size:

5..4 Inch STN LCD Display

Backlight Luminance:

350 Cd/m2

Panel Size(mm):

180.0*62.0*11.60

Viewing Area(mm):

132.00*39.00

Display Resolution:

240*64 Pexels

Interface:

Parallel

Driver Ic:

RA8822

Number Of Pins:

26pin

Packaging Details:

blister+foam box+bubble bag+inside carton+master carton

Supply Ability:

100K per month

Highlight:

5.4 inch STN display

240*64 STN display

36pin parallel port interface STN display

Product Description

5.4 inch STN display with font library driver IC RA8822 36pin parallel port interface resolution is 240*64 brightness is 350 with PCB board

The 5.4 inch STN (Super Twisted Nematic) display is a reliable and feature - rich visual solution. It comes integrated with a built - in font library, enabling quick and easy text display without additional programming efforts. With a 36 - pin parallel interface, it ensures fast data transfer and seamless integration with various host devices. Boasting a resolution of 240×64 pixels, it delivers clear and distinct visuals for text and simple graphics. Powered by the RA8822 driver IC, the display offers stable performance and accurate color representation. The display has a brightness of 350 nits, providing good visibility in normal indoor and slightly lit outdoor environments. Additionally, it includes a PCB board, which simplifies the installation process and enhances the overall stability of the display system.

Product Features

Built - in Font Library: The integrated font library significantly reduces the development time for applications that require text display. It supports a wide range of character sets and fonts, allowing for easy customization of text appearance, making it ideal for projects where quick and efficient text rendering is needed.

Efficient 36 - pin Parallel Interface: The 36 - pin parallel interface enables rapid data transmission, ensuring smooth operation and real - time updates of the display content. It simplifies the connection with host devices, making it suitable for systems that demand high - speed data transfer and quick response times.

Reliable RA8822 Driver IC: The RA8822 driver IC guarantees stable performance, consistent color accuracy, and smooth refresh rates. It effectively manages the power consumption of the display, contributing to energy - efficient operation while maintaining high - quality visual output.

Optimal Resolution and Brightness: With a resolution of 240×64 pixels, the display offers a clear view for text - based information and simple graphical elements. The 350 - nit brightness ensures good visibility in various indoor and semi - outdoor lighting conditions, making it suitable for a wide range of applications without excessive power consumption.

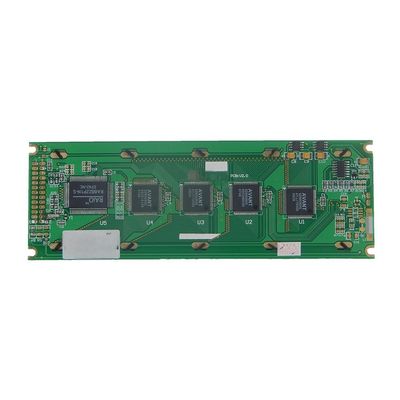

Included PCB Board: The pre - integrated PCB board eliminates the need for additional circuit design and assembly, saving time and effort during the integration process. It also enhances the mechanical stability and electrical reliability of the display, ensuring long - term stable operation.

Applicable Scenarios

Industrial Control Panels: In industrial settings, this display can be used in control panels for machinery, equipment, and production lines. Workers can easily view real - time data, status indicators, and control commands on the clear display. The built - in font library simplifies the display of text - based information, while the reliable driver IC ensures stable operation in harsh industrial environments.

Point - of - Sale (POS) Systems: For POS terminals, the 5.4 - inch STN display can show product information, transaction amounts, and customer instructions clearly. The quick data transfer enabled by the parallel interface ensures smooth operation during busy sales periods, and the included PCB board makes the installation and maintenance of the display in the POS system more convenient.

Portable Electronic Devices: It is suitable for portable devices such as handheld meters, barcode scanners, and remote controls. The compact size, along with the good visibility provided by the 350 - nit brightness, allows users to easily read the display in various usage scenarios. The built - in font library also enables the display of detailed information, enhancing the functionality of these portable devices.

Product Parameter

Panel Name	5.4 inch STN display
Dimensions	180.062.011.60mm
Viewing area size	132.00*39.00mm
brightness	350 cd/m2
Resolution	240*64
working temperature	-20°C~+70°C
storage temperature	-30°C~+80°C
interface	parallel
Driver IC	RA8822

Drawing
